DAL system provides user an easy to use website interface for vehicle registration, driving licenses, and many other transportation related information.
Good DAL system provide:
-
User and Vehicle registration
-
Reachability and appointment scheduling
-
User Service Management
-
Ease of Use
-
Interfacing with financial firms
The following information models represent different aspects of a general DAL system. These models, represented in UML (Unified Modeling Language), can be customized and extended if needed.
-
Use Cases: capture the activities performed by the system and the key players. These correspond to the Functional Requirements
-
System Sequence Diagram (SSD): Refinement of Use cases. Shows the sequence of activities/messages between the players
-

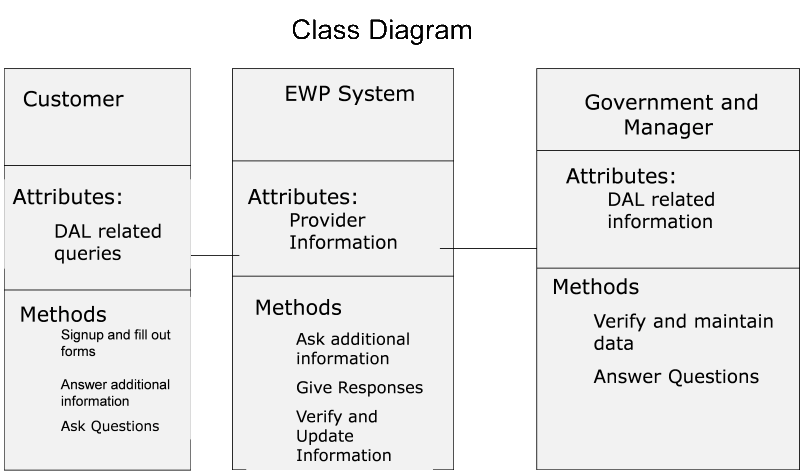

Class Diagram: Shows the key objects in the system and their properties (attributes and methods)
|
